• CT-WPLB-M203E

CT-WPLB-M203E




Specification

TV Mount

Grade Series

MAYA SERIES

By Function

Full Motion

By Mounting Pattern

Universal

Main Material

Cold Rolled Steel

Available Color

Black & White

Max VESA

400x400mm

Recommended TV Size

26”-55”

Tilt

-12 to +12 degrees

Swivel

+/- 90 degrees

Level Adjustment

+/- 3 degrees

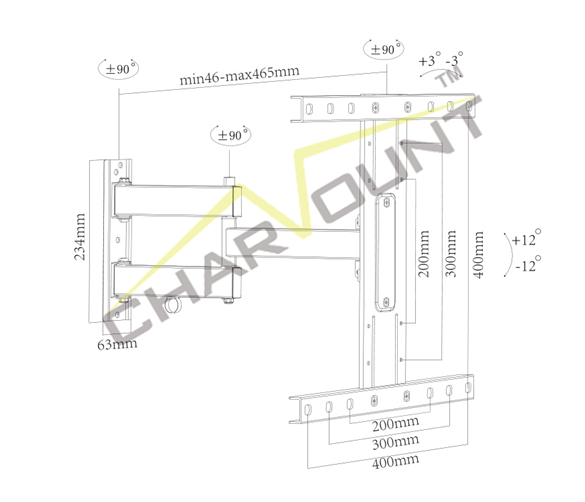

TV to wall

46-465mm

Loading Capacity

35kgs/77lbs

Cable Management

Include

Bubble Level

N/A

Strength Tested

3 times

Packing

Colorful Box

Easy Installation

Yes
